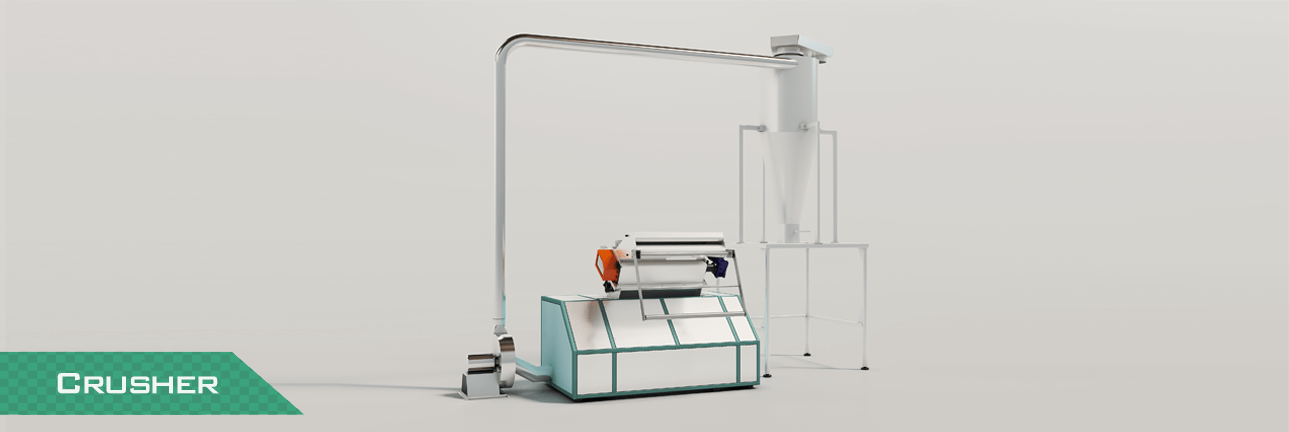

CRUSHER

CRUSHER
Material draw-in width max 900mm
Material thickness,
roll material
max 2 mm
Material thickness,
roll material
min. 0.2mm
Draw-in speed 10-40 m/min
Rotor speed 400 1/min
Grinding capacity with screen size 8 mm 500 kg/h
Total ground power 25 kW
Weight 2000kg
Width-Lenght –Height 131 x 212 x 171cm

KUZEY granulators are designed according to Thermoforming production lines. Irregular draw  speed  of  the thermoformed sheet skeleton is adapted  accordingly  to Kuzey  Granulator .

Our Crusher works in-line or off-line in synchronization with all our thermoforming and extrusion lines for continious Production as a result of standard  size of Final Flake products.
